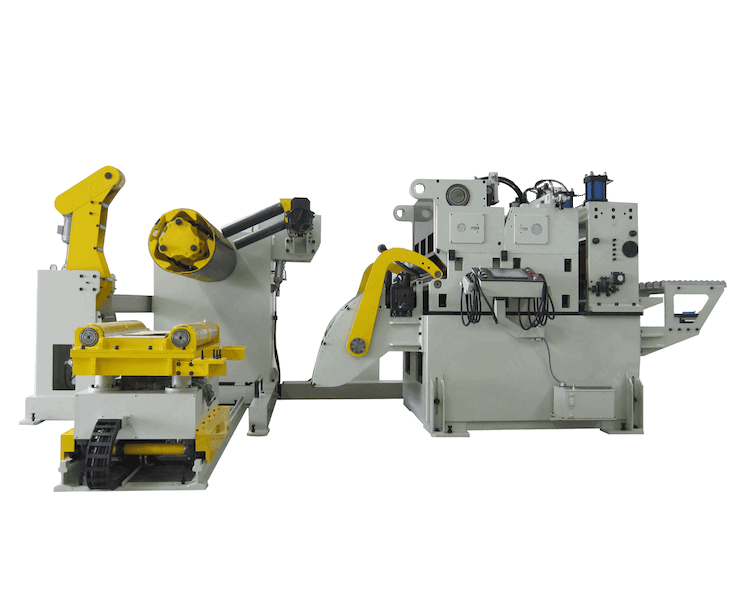

三合一 料架整平伺服機送料機NLF3-GF
NLF3-GF MODEL
三機一體式 伺服整平送料機
3 in 1 N.C.LEVEL FEEDER
可掀式高張力厚板 Thickness 0.6～6.0mm
特性 Features
1. 采用11支整平滾輪，有效的降服高剛性板材、提高材料矯平精度。
Uses 11 leveling hoops, Effective enhances the material to rectify the even precision.
2.可掀開式上整平滾輪組，能迅速徹底的清潔工作滾輪、方便機械點檢。
Easy access to work rolls ,making roll cleaning much easier, The machine was designed to allow easy access to the inside structure for improved maintenance.
3. 整平微調采用伺服控制裝置。
Leveling head servo and adjusting device
規格 Specifications
|
型號Model 項目Item |
NLF3-600GF |
NLF3-800GF |
NLF3-1000GF |
NLF3-1300GF |
||||
|
料寬 Width of Material(mm) |
70～600 |
70～800 |
70～1000 |
70～1300 |
||||
|
料厚 Thickness of Material(mm) |
0.6～6.0 |
|||||||
|
最大料重 Max.Coil Weight(kg) |
5000 |
7000 |
10000 |
|||||
|
卷料內徑 Coil I.D.(mm) |
508 |
|||||||
|
卷料外徑Coil O.D.(mm) |
1400 |
|||||||
|
最大速度 Max.Line Speed(m/min) |
22 |
|||||||
|
標準送料精度 Feed Accuracy(mm) |
±0.15 |
|||||||
|
送料滾輪（組）Number of Feed Rolls |
1 |
|||||||
|
矯正滾輪 Work Roll |
上Upper6/下Lower5 |
|||||||
|
背壓滾輪組Back pressure Roll |
有/Provided |
|||||||
|
標準送料高度 Feed level(mm) |
1200±100 |
|||||||
|
電源電壓 Power Supply |
220VAC 60HZ/AC380v 50HZ |
|||||||
|
空氣壓 Air Supply(kg/c㎡) |
5kg/c㎡ |
|||||||
|
料架擴張方式 Uncoil Expansion |
油壓Hydraulic |
|||||||
|
伺服馬達 Main Motor(kw) |
AC15 |
AC15 |
AC15 |
AC22 |
||||
|
料架馬達 Uncoil Motor(kw) |
2.2 |
2.2 |
3.7 |
7.5 |
||||
|
|
||||||||
矯正能力表 STRAIGTENUNG PERFORMANCE
|
型號Model |
送料厚度 Thickness |
||||||||||||||
|
0.6 |
1.2 |
1.6 |
2.0 |
2.3 |
2.5 |
2.8 |
3.2 |
4.0 |
4.5 |
5.0 |
6.0 |
||||
|
|
NLF3-600GF |
600 |
600 |
600 |
600 |
568 |
490 |
376 |
298 |
219 |
155 |
127 |
95 |
||
|
NLF3-800GF |
600 |
600 |
600 |
600 |
568 |
490 |
376 |
298 |
219 |
155 |
127 |
95 |
|||
|
NLF3-1000GF |
600 |
600 |
600 |
600 |
568 |
490 |
376 |
298 |
219 |
155 |
127 |
95 |
|||
|
NLF3-1300GF |
600 |
600 |
600 |
600 |
568 |
490 |
376 |
298 |
219 |
155 |
127 |
95 |
|||
|
|
|||||||||||||||
上表中的屈服點應力σs=600N/mm2（抗拉強度σb=960N/mm2）
The above figures are the material having yield strength of σs=600N/mm2 max ( Tensile strength of σb=960N/mm2)
規格及外觀由于改進有可能在未通知時變化
Specifications are subject to change for improvement without notice

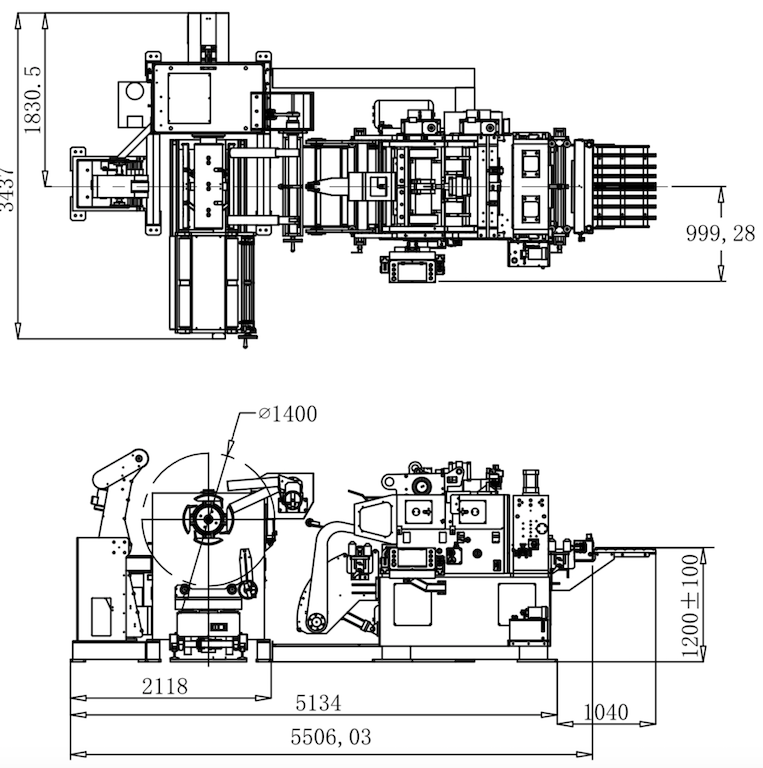

外形尺寸 Overall dimenssions
-
